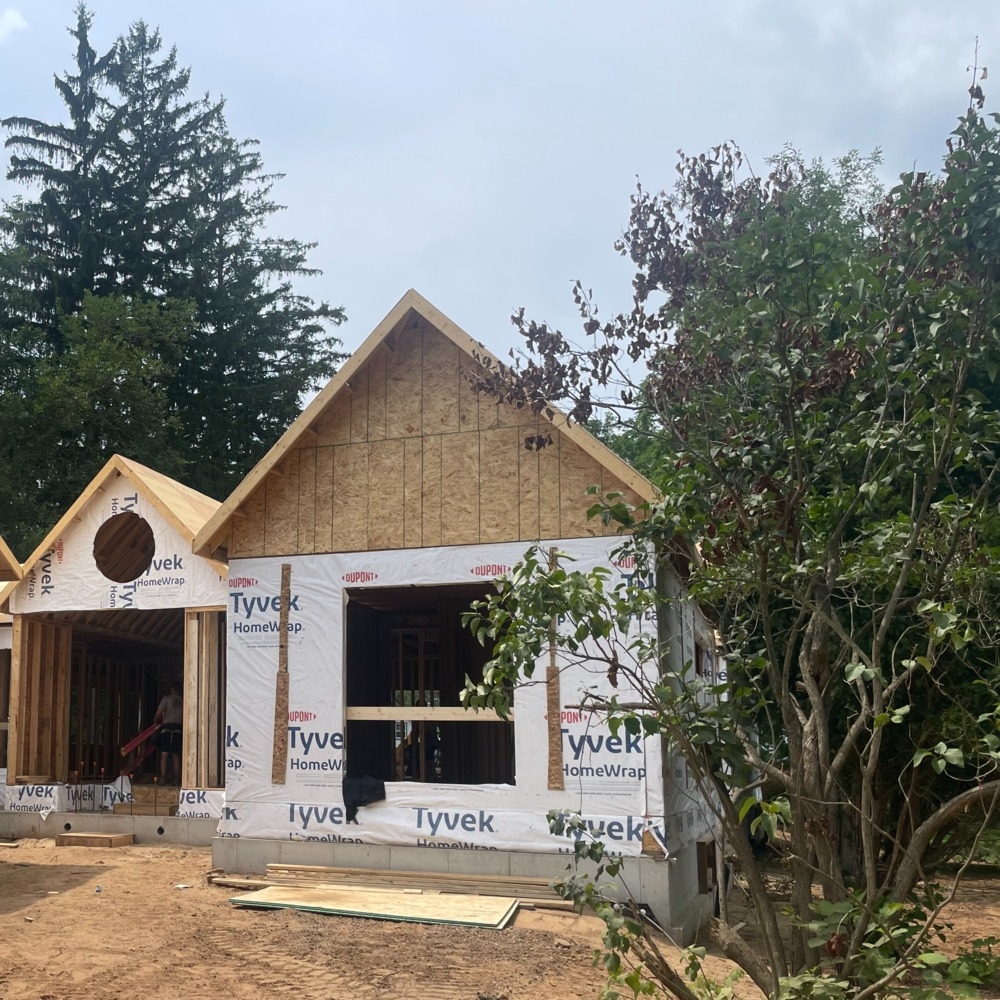

A Complete Guide To Residential Gable Roof Trusses For Builders & Contractors
Key Takeaways:
Gable roof trusses are a classic fixture in residential construction. Reliable, efficient, and cost-effective, these structural systems offer:
- Excellent load distribution
- Support for a wide range of residential builds
- Easy installation
- Reliable performance in the Ontario climate
Builders and contractors must understand gable roof truss design so they can ensure proper construction, installation, and long-term performance.
Gable roof trusses have been around forever. In fact, their origins can be traced back to ancient Greek and Roman civilizations, where they were commonly used to create wide-span roofs capable of effectively shedding snow and water.
The modern gable roof truss is a prefabricated triangular structure that borrows its framework from its original design, featuring a roof pitch that is capable of transferring loads to its exterior walls.
Much like scissor roof trusses or any other kind, they are made of interconnected wooden members that are engineered to carry both live and dead loads. They are known for their characteristic design that features two equal slopes meeting each other at a centralized ridge.
However, there is more to them than their classic design. Gable roof trusses are inherently strong and widely used in residential construction for a number of reasons. In today’s blog, Fonthill Lumber Inc. – Ontario truss engineers with 75 years of experience- will tell you everything you need to know about these classic roofs.
How Gable Roof Trusses Work Structurally
Their classic design might make gable roof trusses seem too simplistic and ineffective, but they are actually quite structurally strong – thanks to their geometry and load distribution properties.
Load distribution in gable roof systems
A gable roof truss uses its central ridge to transfer loads throughout its roof deck via its interconnected members. These forces ultimately land on the building’s exterior load-bearing walls, thereby optimizing load paths and minimizing stress on individual members.
Compression and tension forces within trusses
In gable truss systems, it is the primary responsibility of the top chord to resist the compression caused by external roof loads. Meanwhile, the bottom chords handle tension to keep the roof from spreading under the impact of various forces. As for the internal members, they spread the impact of these forces together, thus maintaining the structural integrity of the entire system.
The role of end walls and bracing
This roof truss’ strength also comes from its end walls. The combined effect of gable end walls and properly installed bracing ensures the roof resists lateral movement, which keeps the whole truss system stabilized while maintaining its long-term alignment.
How triangular geometry improves strength
It is a known fact that triangles are the strongest shapes out there, and that’s why all truss types have embraced this geometry wholeheartedly, with gable trusses being no exception. The triangular configuration of gable roof trusses creates a rigid system that can span greater distances while being structurally stable.
Main Components of a Gable Roof Truss
What makes a gable roof truss a gable roof truss? The answer to that lies in its individual components, which come together to give it its distinct shape and characteristics. These include:
Top chord
The top chord of a gable roof truss gives it its slope while supporting the weight of external loads such as sheathing and other roofing materials. It also plays a pivotal role in transferring snow and wind loads across the rest of the truss system.
Bottom chord
The purpose of the bottom chord is to connect the ends of the entire system while creating support for its interior ceiling. It also resists tension forces and prevents walls from spreading due to their impact. Bottom chords also lend the roof the rigidity it needs to ensure long-term performance.
Web members
The internal braces that connect the top and bottom chords of a gable truss system are referred to as its web members. Their job is to minimize the impact of loads and to improve the structural efficiency of the roof so it can span longer distances without requiring additional support.
Connector plates
Strong metal truss plates are a must for any truss system, and that includes gable trusses too. They support the creation of strong, secure, and consistent joints that help keep the truss aligned while resisting movement.
Bracing systems
Both temporary and permanent bracing enable perfect alignment of the truss system during installation and long after. They also improve the structure’s long-term resistance against wind and other lateral forces.
Advantages of Using Gable Roof Trusses
Apart from their quintessential architectural appeal, there are plenty of other reasons to use gable residential roof trusses for your next project. These include:
Simplified roof framing
Installing gable roof trusses is very easy, as they arrive on-site in a prefabricated state, ready to be placed and fastened. This eliminates expensive procedures such as on-site measuring and cutting, which are prone to errors, reworks, and material waste.
Cost-effective construction
Manufactured according to pre-specified dimensions in highly controlled environments, there is very little material waste in fabricating gable roof trusses. Optimized lumber use and easy installation keep material and labor costs in check.
Faster installation
Since they are prefabricated offsite and delivered ready for installation on a just-in-time basis, they speed up the construction process – especially when compared to traditional stick framing. This ensures projects stay on schedule.
Strong weather resistance
Gable roof trusses are inherently strong and capable of distributing external and internal, live and dead loads efficiently. This makes them well-suited to Ontario’s climate. In fact, they retain their performance even under the strain of heavy snows, winds, and rains.
Better attic ventilation and drainage
The gable truss's classic profile enables water runoff in attic spaces, preventing waterlogging and ensuring proper ventilation to prevent moisture-related damage.
Flexible architectural design
Gable roof trusses can be configured to match varying span and pitch requirements, giving contractors the flexibility they need to build homes, garages, workshops, and more.
Gable Roof Trusses vs Rafters: Key Differences
There is almost nothing in common between gable roof trusses and rafters – except perhaps the use of lumber. In any case, if the two were stacked against each other, gable roof trusses would come out on top almost always.
Structural design comparison
Let’s compare their designs first. Gable roof trusses, as you know, are engineered triangular frameworks made up of interconnected members. As for rafters, they make use of individual sloping beams which are connected with the help of ceiling joists and ridge boards. This makes trusses less complicated to fashion than rafters.
Installation efficiency
Since trusses are manufactured off-site in highly controlled environments, there’s no need for on-site adjustments or modifications. They can be installed as soon as they arrive, thereby keeping labor requirements to a minimum. Rafters are different as they are made entirely onsite, which increases labor demands and slows down installation.
Cost and labor requirements
Although trusses require cranes for accurate placement and installation, their cost and labor requirements are lower due to their prefabricated nature, which simplifies installation and minimizes material waste. The cost of rafters is considerably higher in comparison, as they depend on manual labor, which can increase material waste due to human error.
Span capabilities
Load-bearing walls are not always necessary for roof trusses to span great distances. This allows the creation of more open spaces. Rafter systems, on the other hand, depend on joists and external walls for support.
Best applications for each
Gable trusses are best used to construct new residential projects, while rafters are perfect for renovations or small additions or modifications to existing homes.
Design Considerations for Gable Roof Trusses
With proper planning, truss designers and engineers can work with builders to create a strong and effective system that maintains reliable and consistent performance in the long-run. Key factors that influence roof truss design include:
Roof pitch and slope
The pitch of the roof affects multiple facets, including how it handles drainage, usable attic space, as well as its overall performance. While steeper pitches are great for shedding rain and snow, lower pitches create more attic space.
Span and load requirements
The total span of gable roof trusses is determined by the distance between their supporting walls. The good news is gable trusses can span wide. However, their final span length will play a major role in determining the sizes of their individual members, web configurations, and connection details. The longer the span, the stronger the truss should be to handle required loads efficiently.
Wind and snow load considerations
While designing trusses, wind exposure and snow accumulation must be accounted for. Engineering roof trusses with snow and wind load conditions in mind preserves their long-term stability.
Material selection
Lumber grade, moisture, and fastener quality are some of the other factors that affect the strength and durability of truss systems and should be given priority at the design stage.
Building code compliance
Every gable roof truss system should be compliant with local building codes to ensure safe installation, reliable load capacity and successful inspections and approvals.
Step-by-Step Gable Roof Truss Installation Process
Good engineering is just the start of gable roof truss design. Proper installation is the next step to ensuring the entire system performs as expected and stays stable in the long run.
Step 1: Review engineered plans
Start by reviewing engineering drawings to confirm accurate truss placement and layout. Check the drawings for span, bearing locations, and bracing requirements as well.
Step 2: Prepare wall supports
Before placing trusses in their final spot, verify if the wall plates are level and perfectly anchored. This ensures they are capable of supporting the weight of trusses, preventing misalignment during installation.
Step 3: Position and lift trusses
Once the trusses are ready, lift them into position and place them in accordance with the layout plan. Every unit should be handled individually and carefully to prevent damage.
Step 4: Install temporary bracing
Temporary bracing should be installed immediately after trusses have been positioned in the right spot. This ensures they remain aligned until permanent bracing can be installed.
Step 5: Secure permanent bracing
Install permanent lateral and diagonal bracing following the instructions specified in the engineering plan to ensure gable trusses remain stable and are capable of resisting lateral forces.
Step 6: Inspect spacing and alignment
Before calling crews to the ground, conduct a final inspection of the entire gable truss system to verify if its spacing, alignment, fastening, and bracing are in accordance with the project’s specifications.
Best Applications for Gable Roof Trusses
Gable roof trusses might look simple, but they make quite a statement with their timeless silhouette. This makes them suitable for a couple of types of projects, which include:
- Residential homes: Simple, durable, and cost-effective gable roof trusses are an excellent choice for residential projects of all scales and budgets
- Garages: Gable roof trusses are widely used to construct detached and attached garages due to their effective drainage mechanism and simple installation
- Sheds: Garden sheds and workshops frequently feature gable roof trusses because of their simple design and ability to accommodate a wide range of roof pitches and spans
Common Gable Roof Truss Mistakes Builders Should Avoid
A couple of common installation errors can affect the performance of gable roof trusses. These are best avoided:
- Incorrect spacing: Poorly spaced trusses can adversely impact the performance and load-carrying capacity of a roof system
- Poor bracing installation: Missing or incorrectly installed bracing can impact the truss’s structural stability
- Ignoring load calculations: Overlooking load calculations can cause structural issues and even truss failure
- Improper connection fastening: Loose fasteners often lead to truss movement and alignment issues
Conclusion: Why Gable Roof Trusses Remain a Practical Choice
A well-engineered gable roof truss system checks two major boxes for final occupants: stylish silhouette matched with exceptional long-term structural performance. Fonthill Lumber Inc.’s gable roof trusses, in particular, are renowned for their efficient installation, strong design, and dependable performance in Ontario. Contact us to get the most trusted roof framing solutions in the entire province.
FAQs
What is a gable roof truss?
A gable roof truss is a type of pre-fabricated roof framework that features two equally sloping sides and a central ridge where they meet. It’s a stable and cost-efficient roofing system.
Are gable roof trusses stronger than rafters?
Neither system is inherently stronger than the other. However, gable roof trusses offer superior load-bearing performance and can span longer distances without additional support.
How far can a gable roof truss span?
The maximum span of a gable roof truss depends entirely on a project’s specifications, including its roof’s pitch, design, slope, lumber grade, load requirements, and local building codes.
What pitch works best for gable roofs?
There is no single ideal pitch, per se. However, the best pitch for a gable roof truss depends on its intended design and drainage requirements. Local climates and roofing materials are major contributing factors too.
Are gable roof trusses suitable for sheds?
Absolutely. Though primarily used in residential construction projects, gable roof trusses can also be used to create sheds, workshops, and agricultural buildings.
